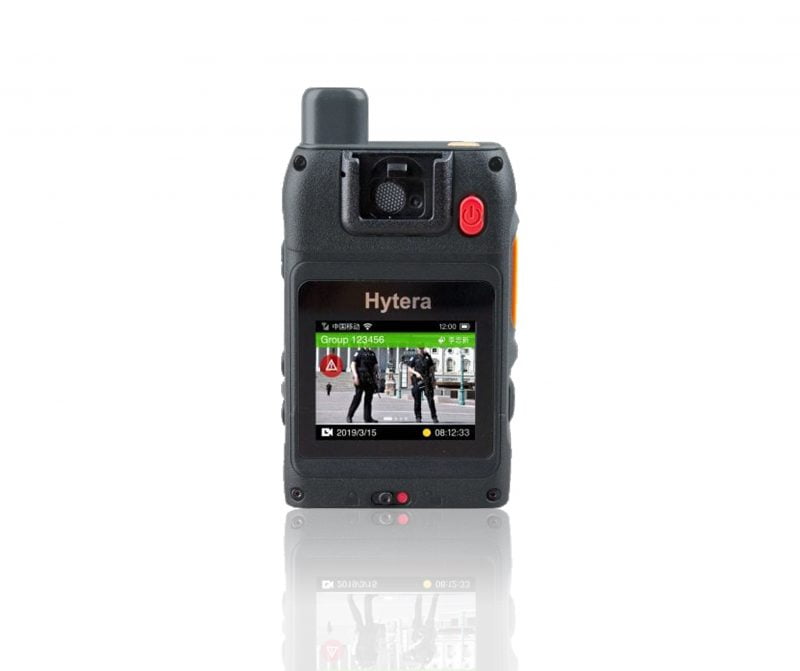

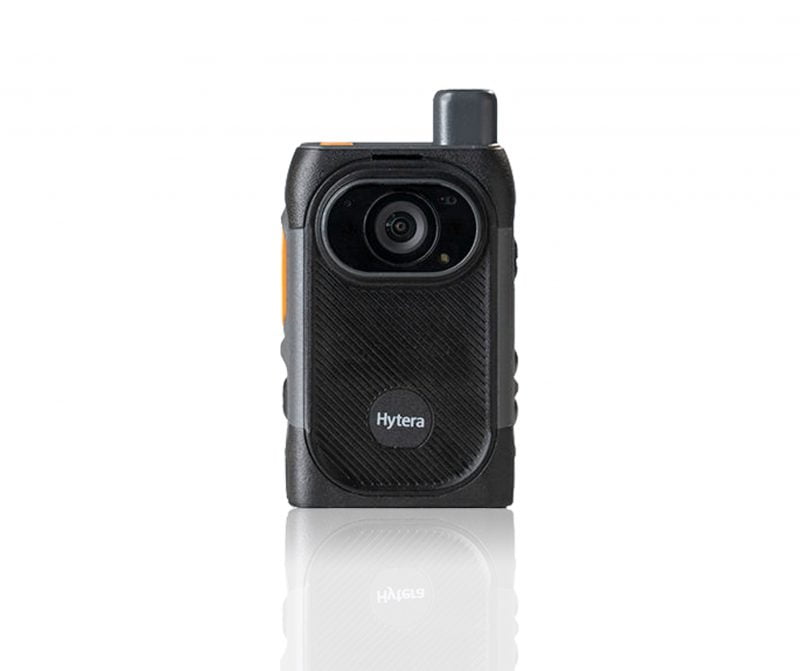

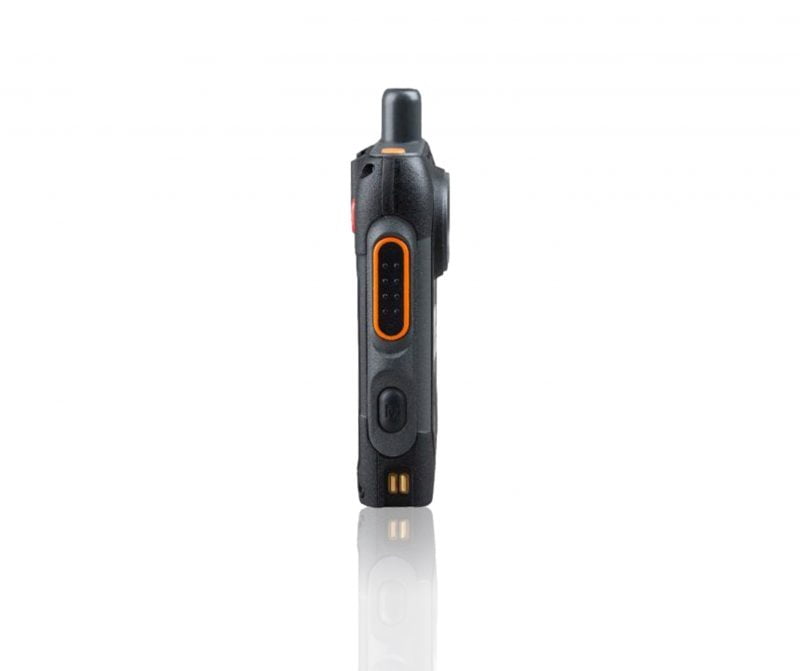

Hytera VM580D Body Worn Camera

  • Features Include

    • 1080P HD video recording
    • Powerful emergency battery: 7 hours active, 8 days standby
    • Compact, slim & lightweight
    • 16/32/64/128 GB options available
    • 2 inch OLED Display
    • 139 degree wide visual range
    • Image snapshot
    • Audio voice recorder
    • IP67 waterproof & MIL-STD-810G (Military Standard)

    • Body Worn Camera
    • Battery
    • USB Cable
    • Charger
    • Rotatable Belt Clip
Dimensions (mm)86.5 x 55 x 26
Weight (grams)145
Display2.0 inch OLED (B&W)
Video ResolutionVGA @ 30/60fps, 720P @ 30/60FPS, 1080P @ 30FPS
Storage Capacity16/32/64/128 GB options available
Battery Type2500 mAh
Battery Life (Continuous Video Recording)>7 Hours
Charging Time< 4 Hours

More information

Hytera VM580D Body Camera Product Description

The Hytera VM580D ultra-thin bodycam is part of Hytera’s new generation of smart 4G body-worn cameras that combine high definition video streaming and recording with multimedia communications options.

As a mobile-enabled device fitted with a SIM to connect to 3G and 4G LTE data networks, the VM580D streams live video as it is captured, allowing the wearer to share incidents in real time with colleagues and control centres. This provides an extra layer of security compared to record-only cams, helping colleagues know exactly what is happening to enhance situational awareness and facilitate decision-making

In addition, the VM580D also functions as a cellular radio, with a two way radio-like push-to-talk (PTT) button, in-built microphone and speaker for one-touch voice communications. This means the wearer can provide commentary on incidents to accompany the live streamed video or make specific requests. As connections are over LTE, messages can be transmitted over a limitless range.

The Hytera VM580D ensures precise and effective recording via an HD camera in 1080p quality, providing sharp detail and smooth continuity both for streaming and immediate playback. In addition, it also boasts two infrared LEDs which automatically turn on in dim light to enhance night vision capabilities, meaning the VM580D captures a clear image in low light conditions. With infrared supplementing natural light, the VM580D enables clear identification of a human face up to five metres away even in the dark – perfect for capturing evidence on night patrols.

The model comes with 16GB of on-device storage as standard, which at 30 frames per second is enough to record up to two hours of video. Storage can be expanded as an optional extra. The 3000 mAh battery supports up to eight hours continuous shooting on a single charge, and thanks to a clever built-in backup battery, you can continue shooting for several minutes even as the main battery is changed.

While the VM580D is feature rich, this is not at the cost of convenience or portability. This ultra-thin smart bodycam benefits from an ergonomic design just 20mm in thickness and weighs just 170g, meaning you can easily hold it in your hand or clip it to your uniform or belt discreetly without it getting in the way.

Yet despite its compact size, the VM580D is also built to withstand the rigours of use in any condition. The camera is certified IP68 dust and waterproof and the chassis built to conform to US military impact standards, making it capable of surviving a drop from up to 2 metres unscathed.

Finally, all video data recorded and streamed by the VM580D is protected by robust encryption, with every video indelibly stamped with device and user ID and the time it was captured. This ensures all evidence captured is tamper-proof and meets the strict standards required to be legally admissible.


  • Body Worn Camera
  • Battery
  • USB Cable
  • Charger
  • Rotatable Belt Clip

Technical Specifications

  • Dimensions: 94 × 63 × 20 mm
  • Weight: 172g
  • Operating System: Android 7.1
  • Battery Capacity: 3000mAH
  • Screen: 2-inch TFT LCD Capacitive Touchscreen
  • Camera Resolution: 16MP (image), 1080p@30 fp (video)
  • Connectivity: WiFi, 3G/4G LTE via nano-SIM
