Kenwood NX-3220E2 VHF Portable Two Way Radio

How to buy
To purchase these radios you will require an Ofcom Licence – read more about licences here or contact our team today on 01245 403520.
Enquire now
  • Features Include

    • VHF
    • Analogue and digital dual mode
    • Bluetooth
    • GPS
    • IP54/55/67 Rated
    • Active Noise Reduction
    • Four-line display
    • D-pad scroll button
  • Standard Package Contains

    • Radio
    • Battery
    • Antenna
    • Belt Clip
    • Single Charger
    • User Guide
Weight (grams)340
Range (km)3
Power Output (watts)5
Frequency (Mhz)VHF 136-174
Number of Channels260
Battery TypeLithium Ion
Battery Life (hours)11

More information

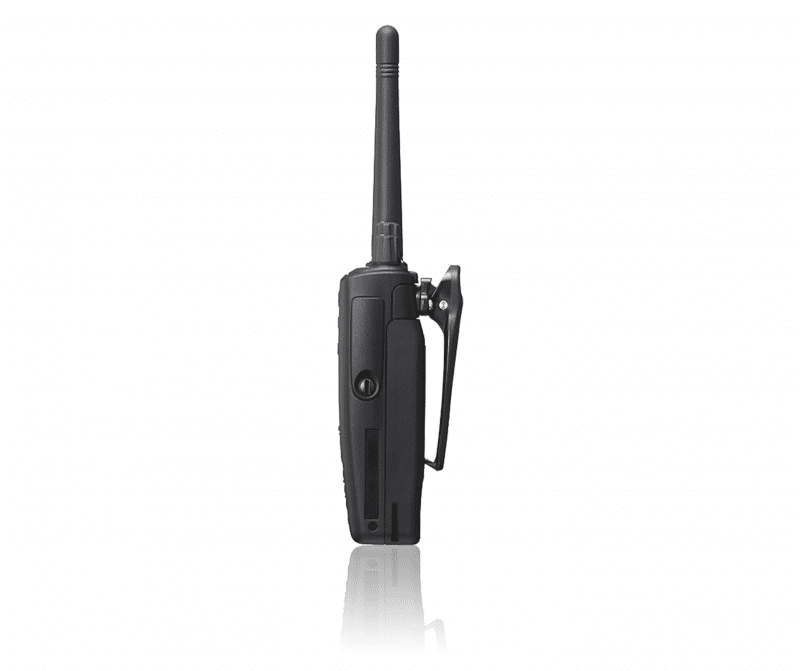

Kenwood NX-3220E2 Description

The Kenwood NX-3220E2 is a multi-mode two way radio capable of operating as an analogue and digital radio simultaneously.

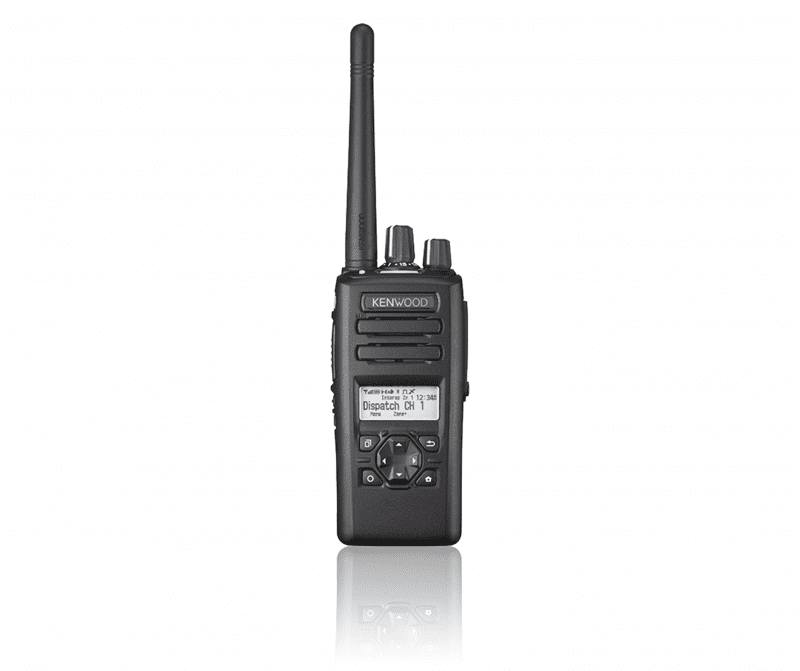

Featuring a four-line display, the NX-3220E2 is part of Kenwood’s next generation Nexedge range. Supporting dual digital modes, analogue, GPS, Bluetooth and advanced trunking options, it combines a rich feature set with reliable performance and robust construction – perfect for mission critical communications in fast paced environments like industry and security.

With Kenwood’s Active Noise Reduction (ANR) technology, the NX-3220E2 can be used confidently around heavy machinery or anywhere where there is high volume background noise. As a VHF two way radio, it is well suited to use outdoors in the open where a large coverage area is required.

NX-3220E2 handsets are built for use in all weathers and in tough environments. They meet the IP54, IP55 and IP67 standards for water resistance and dust ingress, and are rated according to the US military standards MIL-STD-810 C/D/E/F/G for temperature, vibration and shock resistance.

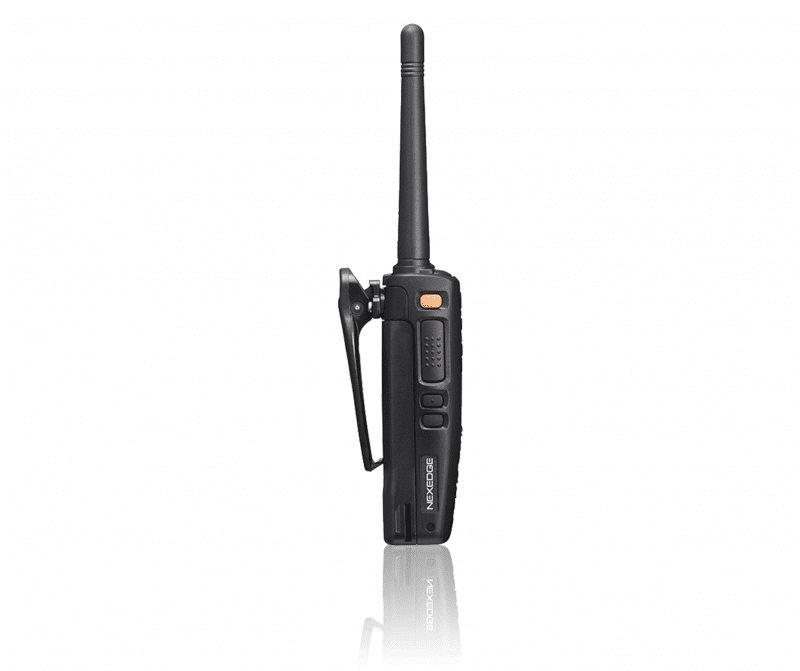

The NX-3220E2 is compact and straightforward to use, with a four-direction scrolling D-pad for navigating options on the screen, a Push-to-Talk button, volume control and channel selector. It includes an Emergency Button safety feature for raising alarms, and also has a built-in motion detector which issues Man Down alerts in the event of a fall.

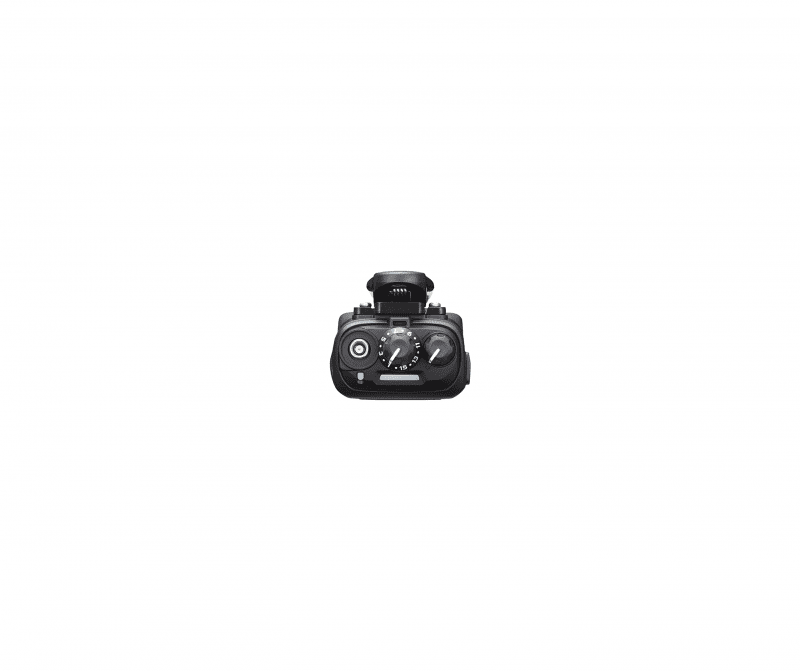

On top of the handset, there is a seven-colour LED indicator which displays the current mode in use. Each handset also comes programmed with AES and DES encryption software to ensure communications are kept private within the network.

The ability to operate in both digital and analogue modes simultaneously makes the NX-3220E2 a good choice if you are planning on upgrading your two way radio fleet to digital. Instead of switching all handsets at once, you can add a few Nexedge radios at a time, and they will still communicate seamlessly with your older analogue models.

The NX-3220E2 also supports two digital modes, the industry standard DMR protocol and Kenwood’s own NXDN. The normal channel capacity is 260, but operating on DMR, this can be doubled using dual-slot direct mode, while Type C and Gen2 trunking in NXDN can increase the channel capacity to 1000.

User Environment & Radio Ratings

All Kenwood NX-3000 series portable radios are designed to guarantee reliable performance in tough environments and each handset goes through a series of stringent tests before shipment. They meet the IP55 international water and dust ingress protection standards, which can be upgraded to IP67. This means the devices can withstand being fully submerged in water. All radios also meet the MIL-STD 810 C to G US military standards which test durability against drop, immersion, splash, key punch, extreme temperature, dust, and heavy rain.

Kenwood NX-3220E2 Portable DMR Performance Specifications

  • Designed to operate in Analogue FM, NXDN and DMR Digital modes, even on the same channel.
  • VHF frequency range
  • Up to 8 hours battery life
  • 512 Channels
  • Max 5W power output
  • Optimised digital audio processing

Kenwood NX-3220E2 Handheld Radio Safety Features

  • Emergency Button
  • Lone Worker
  • Man Down
  • Motion Detection


All Kenwood two-way radios come with a two year manufacturers warranty.
